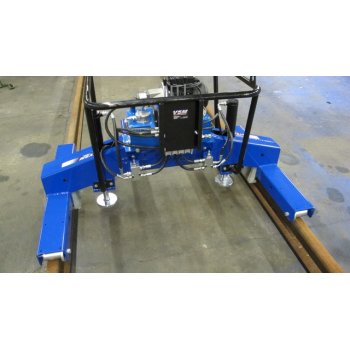

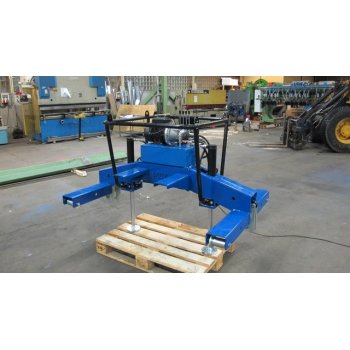

RAIL LIFTER

The VSM Rail Lifter makes it easy to carry out safe and heavy rail lifts.

  • The grippers are designed to grip harder, the the higher load is.
  • All functions are powered by hydraulics, which in turn is powered by a 2kw power plant.
  • The rail wheels are raised and lowerable to be able to pass over railway crossings etc.
  • The grippers are available in two versions. One for standard rail and one with universal bracket for standard rail and street rail.
  • You control the rail lifter comfortably and easily with 4 levers.
  • Directional lighting for work in the dark.

DATA

  • Weight without electricity 350 kg.
  • Height 1400 mm.
  • Width 1880 mm.
  • Length 1170 mm. with brake 1340 mm.
  • Lifting force 10 tons
  • Loading valves
