ballast tamper

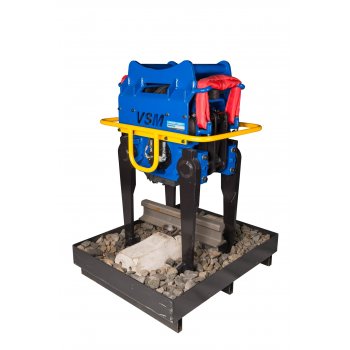

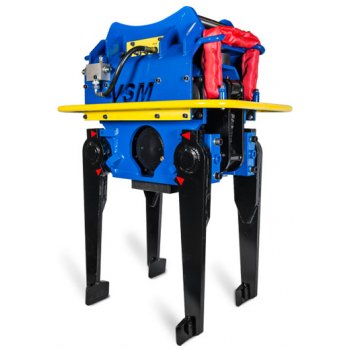

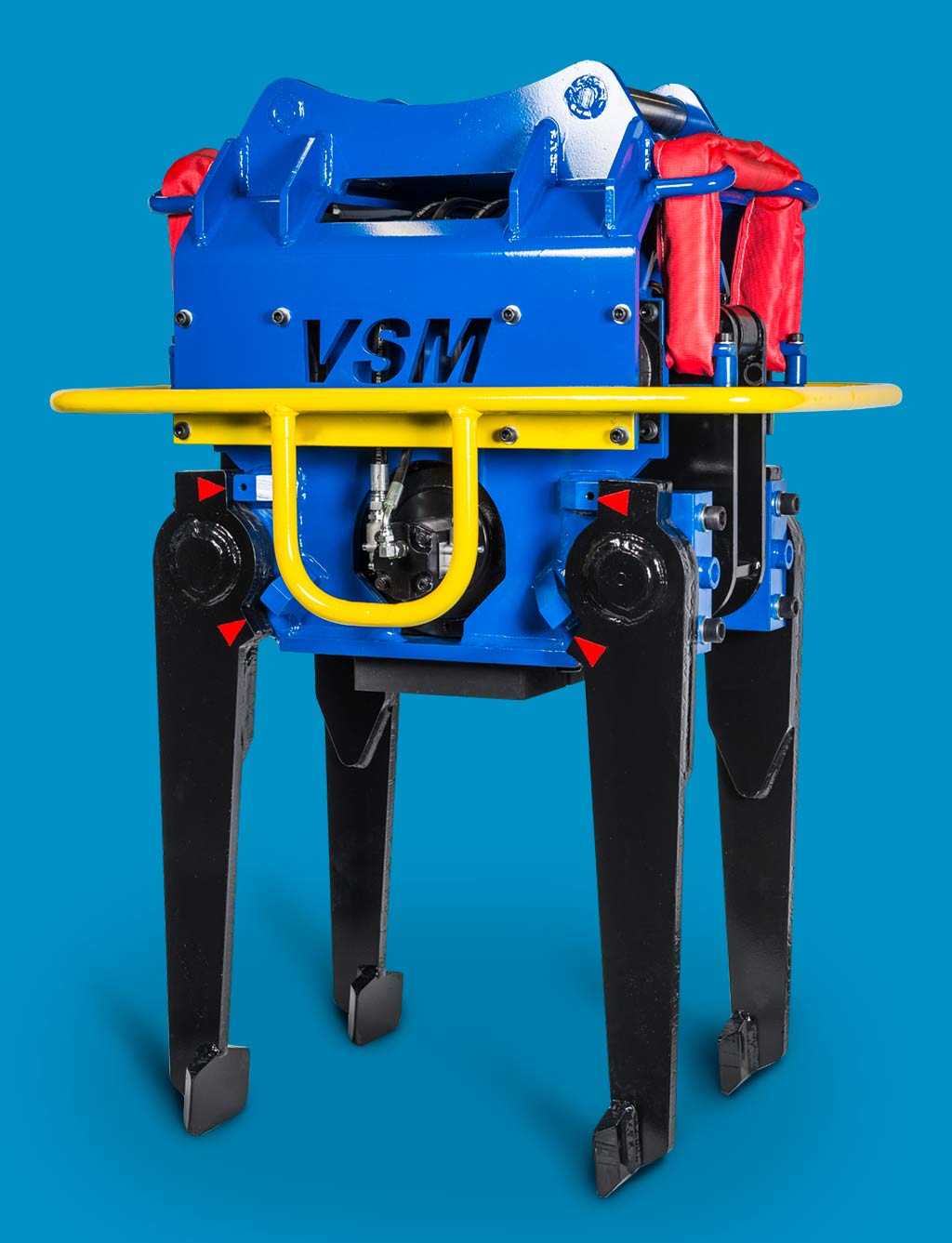

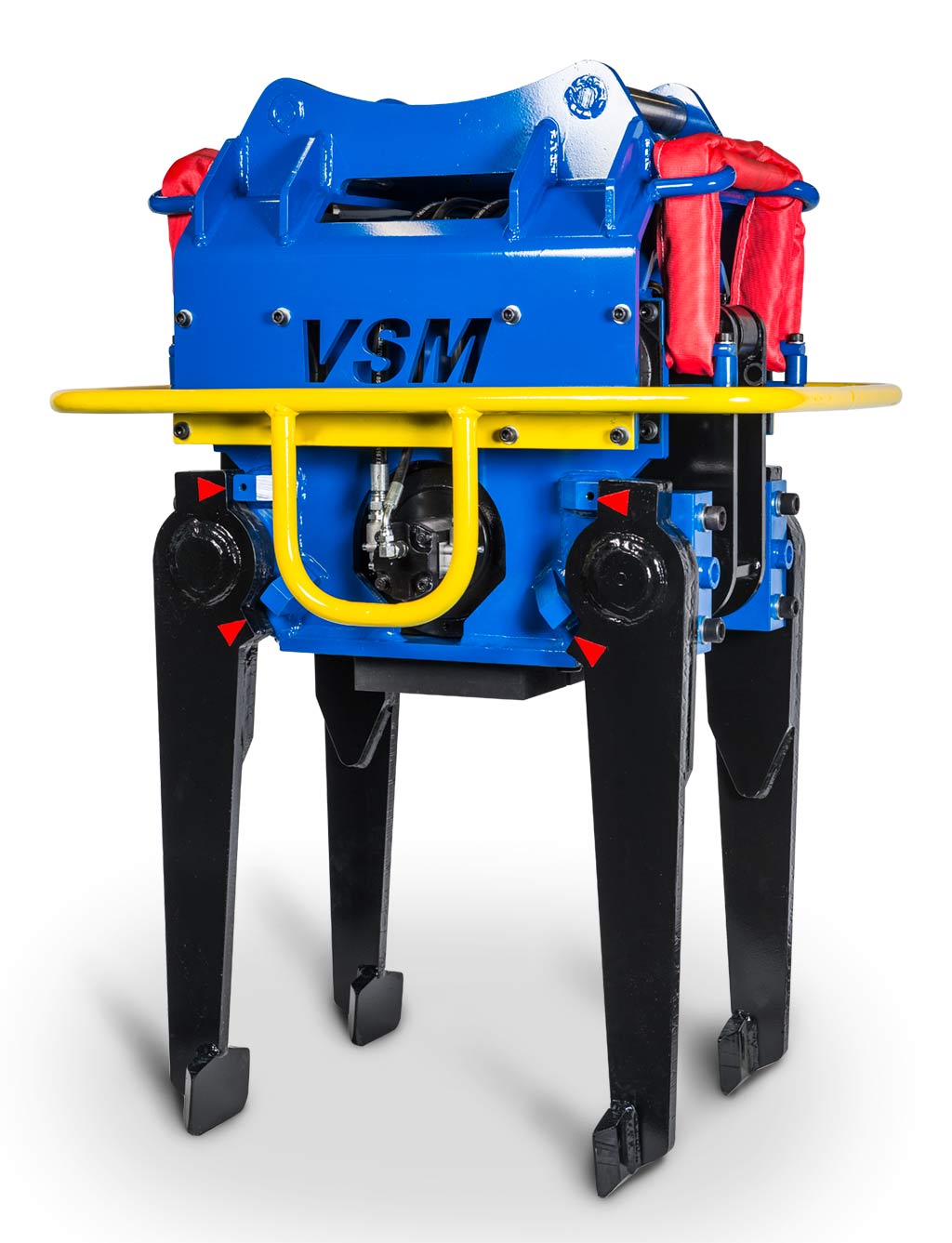

The VSM Ballast Tamper is the first choice for anyone involved in railway maintenance. It is a high quality product which has exceeded the high demands of all our customers for reliability, maintenance and noise. The VSM Ballast Tamper has been developed in our own design engineering department and great effort has been put into enhancing the products that were previously available on the market. This has resulted in several innovative and unique solutions, some of which have been patented.

  • Low noise, can be operated in urban areas, even at night
  • Selected components for optimal reliability and durability
  • A steel frame around the product makes it easy to handle
  • Maintenance is simple, the vibrator can be removed for service
  • Including user manual and required equipment to set the optimum speed

An outstanding feature of the VSM Ballast Tamper is its low noise level, which makes it possible to work in densely populated areas, even at night. All components are carefully selected and the steel is of the highest quality for optimum durability and reliability.

The steel frame surrounding it makes it easy to handle and various attachments and connections are available if required.

Maintenance is easy because the vibrator can be removed for servicing and replacement.

The VSM Ballast Tamper is supplied with a detailed instruction manual for the hydraulic vibrator and equipment for setting the optimum speed.

Vibrator

Max 50Hz/3000 rpm. 48 l/min.

Recommended pressure 210 bar. Max pressure 250 bar.

Hydraulic oil Energol HLP-D 32.

Maintenance

Daily inspection of bolted joints.

M-10 = 79 Nm

M-12 = 136 Nm

M-16 = 333 Nm

M-20 = 649 Nm

M-22 = 874 Nm

Daily lubrication of the bearing attachment and cylinder attachments of the arms.

Weight 650 kilos.
